Product overview
QDX series small submersible electric pumps consist of three parts: water pump, seal and motor. The motor is located on the upper part of the electric pump and is a single-phase or three-phase asynchronous motor; the water pump is located on the lower part of the motor and is a centrifugal impeller with a volute structure; a double-end mechanical seal is used between the water pump and the motor, and an "O"-shaped oil-resistant rubber seal is used as a static seal at each fixed stop.

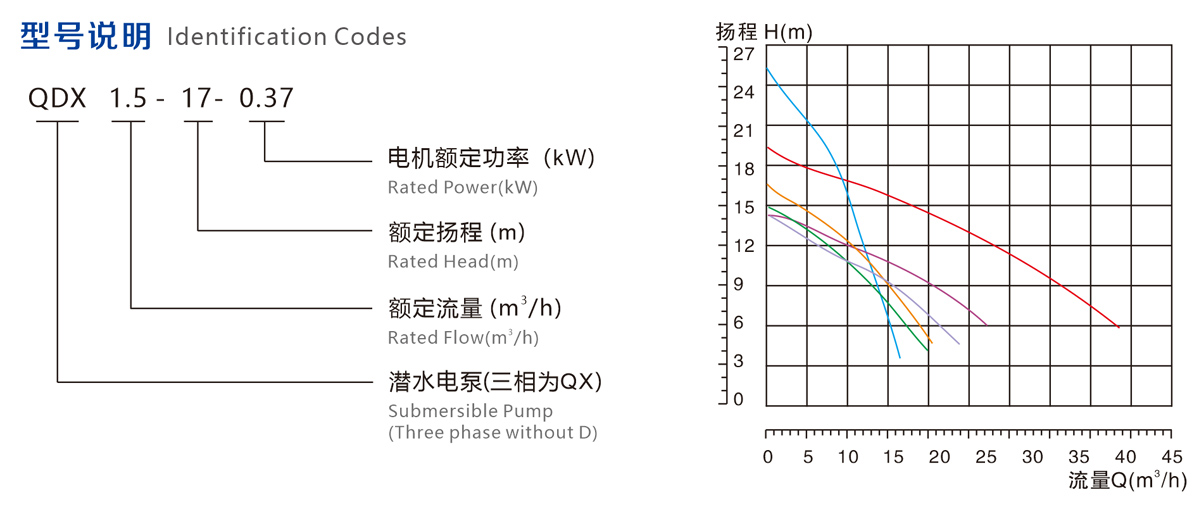

| Model | power (kw） | flow (m/h) | lift (m) | Non voltage（M） | caliber (mm) | speed (r/min) |
| QDX1.5-17-0.37 | 0.37 | 1.5 | 17 | 220 | 25 | 3000 |
| QDX3-18-0.55 | 0.55 | 3 | 18 | 220 | 32 | 3000 |
| QDX1.5-32-0.75 | 0.75 | 1.5 | 32 | 220/380 | 25 | 3000 |
| QDX3-24-0.75 | 0.75 | 3 | 24 | 220/380 | 32 | 3000 |
| QDX8-18-0.75 | 0.75 | 8 | 18 | 220/380 | 38 | 3000 |
| QDX10-16-0.75 | 0.75 | 10 | 16 | 220/380 | 51 | 3000 |
| QDX15-10-0.75 | 0.75 | 15 | 10 | 220/380 | 64 | 3000 |
| QDX30-6-0.75 | 0.75 | 30 | 6 | 220/380 | 76 | 3000 |
| Q0X3-35-1.1 | 1.1 | 3 | 35 | 220/380 | 25 | 3000 |
| QDX6-26-1.1 | 1.1 | 6 | 26 | 220/380 | 38 | 3000 |
| QDX10-20-1.1 | 1.1 | 10 | 20 | 220/380 | 51 | 3000 |
| QDX15-15-1.1 | 1.1 | 15 | 15 | 220/380 | 64 | 3000 |
| QDX30-9-1.1 | 1.1 | 30 | 9 | 220/380 | 76 | 3000 |
| QDX3-38-1.5 | 1.5 | 3 | 38 | 220/380 | 25 | 3000 |
| QDX10-25-1.5 | 1.5 | 10 | 25 | 220/380 | 51 | 3000 |
| QDX15-20-1.5 | 1.5 | 15 | 20 | 220/380 | 64 | 3000 |
| Q0X40-9-1.5 | 1.5 | 40 | 9 | 220/380 | 76 | 3000 |
| Q0X65-7-2.2 | 2.2 | 65 | 7 | 220/380 | 102 | 3000 |
Scope of use
This series of electric pumps are small in size and light in weight, and are particularly suitable for underground water pumping in rural areas, farmland irrigation, garden irrigation, and household water supply. They can also be used to remove industrial water accumulation, water supply and drainage in construction, and aquaculture.
Working conditions
1. Water temperature: 0℃-40℃
2. The pH value of the water source is 6.5-8.5
3. The volume ratio of solid impurities in the medium does not exceed 0.1%, and the particle size is not greater than 0.2mm.
4. The diving depth does not exceed 5m
5. Power supply voltage: single-phase 220V, three-phase 380V, frequency 50Hz, voltage fluctuation range is ±10% of the rated value
