According to the type of working power supply: can be divided into DC motor and AC motor.
keyword：Motor,YE2,YE3
Tel/Wechat/Whatsapp
Detail
PRODUCT OVERVIEW
YYB series pump ftor asynchronous motor is specially designed for the axial plunger pump motor, shaft, can match with pump directly, without coupling, thus reducing the installation space, motor has compact structure, small volume, light weight, small vibration, low noise, high efficiency, long service life, etc. Widely used in machine tools, forging, crane, ship, injection molding machine, metallurgy, engineering machinery, mining machinery, hydraulic machinery etc. Can also be applied to CY-Y unit pump, gear pump blades, and other types of plunger pump motor matching of the unit.
OPERATING CONDITIONS
Centre height of frame: 90- 132mm
Power range: 0.37-7.5KW
Rated voltage: 380V ( special should order )
Rated frequency: 50Hz ( special should order )
Protection class: IP55
Insulation class: F
Duty type: S1
The installation structure forms: IM B3/IM B5

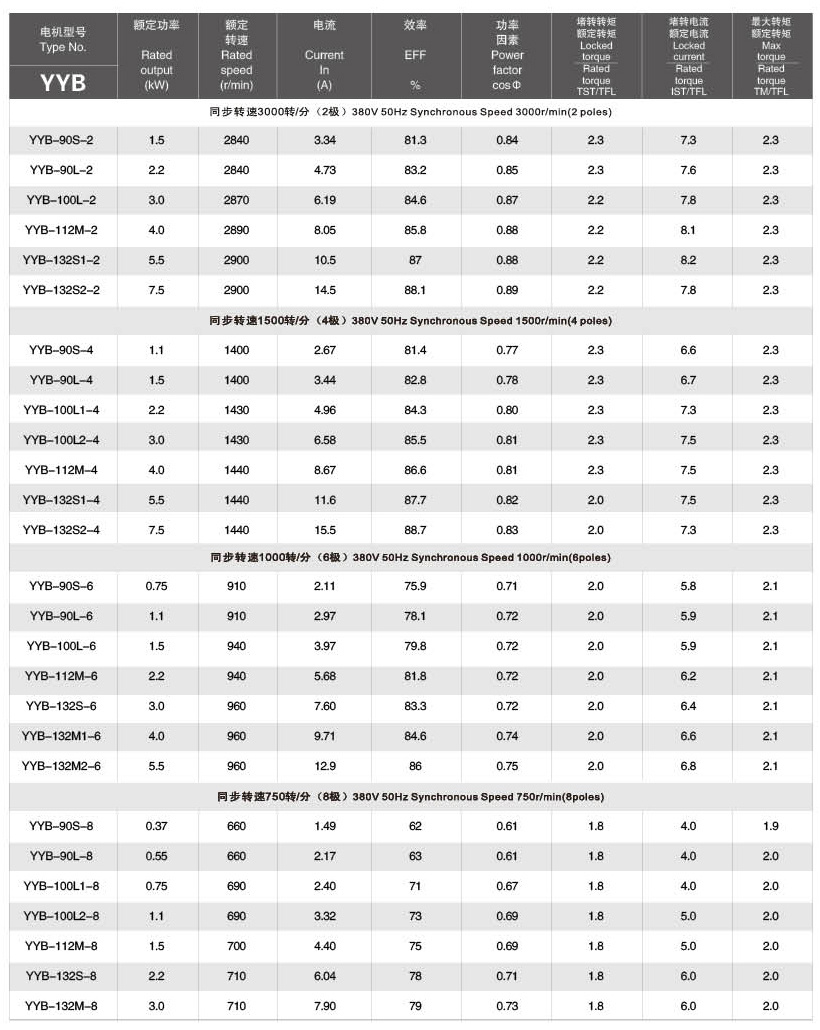

TECHNICAL DATE

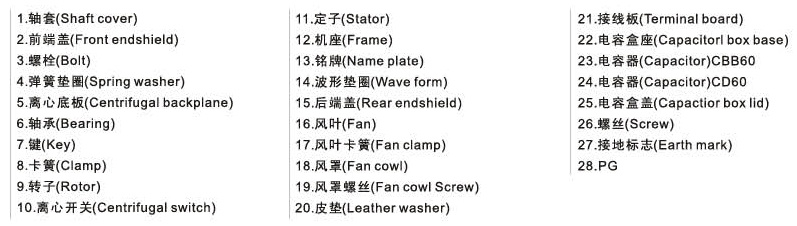

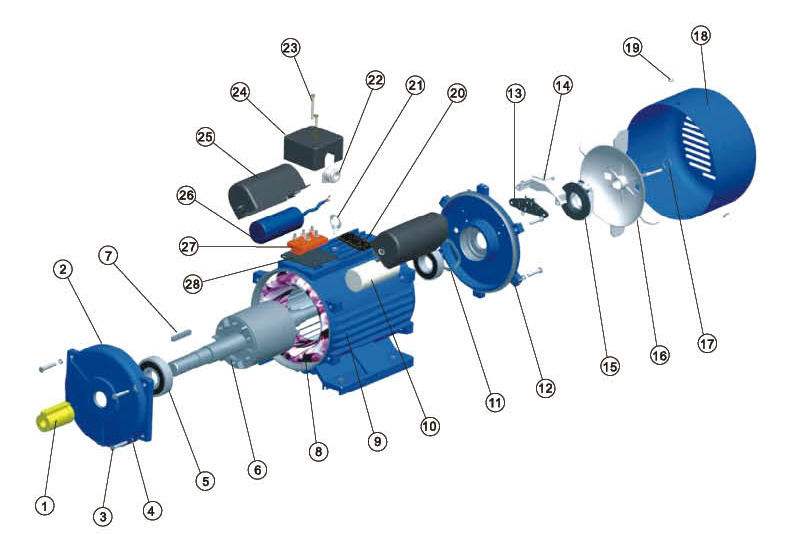

EXPLODED VIEW
