YL Series single-phase two-value capacitor asynchronous motor
Catalog：
According to the type of working power supply: can be divided into DC motor and AC motor.
keyword：Motor,YE2,YE3
Tel/Wechat/Whatsapp
Detail
PRODUCT OVERVIEW
YL/ML series single-phase capacitor asynchronous motor double value according to the national standard, the manufacture, hasgood starting and running performance, low noise, small volume, light weight, convenient maintenance, etc.Widely used in aiicompressors, pumps, water machine, refrigeration, medical machinery and small machinery.Use of only a single-phase poweisupply situation is particularly.
OPERATING CONDITIONS
Ambient temperature: -15℃≤0≤40℃
Altitude: not exceeding 1000m
Rated voltage: 220V
Rated frequency: 50Hz、60Hz
Protection class: IP44、IP54
Insulation class: B、F
Cooling method: ICO141
Duty: S1(continuous)
TECHNICAL DATE
| Type | Output | Voltage (V) |
Frequency (HZ) |
Current (A) |
Speed (r/min) |
Eff (%) |
Power factor |
Locked torque Rated lonque TST/TFL |
Lockaid cument Reded lorque IST/TFL |
Max torquae Rated lonque TM/TFL |
|
| HP | KW | ||||||||||
| YL/ML7112 | 0.5 | 0.37 | 220 | 50 | 2.73 | 2800 | 67 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL/ML7122 | 0.75 | 0.55 | 220 | 50 | 3.88 | 2800 | 70 | 0.92 | 1.8 | 6.0 | 1.8 |
| YLML7114 | 0.33 | 0.25 | 220 | 50 | 1.99 | 1400 | 62 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL/ML7124 | 0.5 | 0.37 | 220 | 50 | 2.81 | 1400 | 65 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL/ML8012 | 1 | 0.75 | 220 | 50 | 5.15 | 2800 | 72 | 0.92 | 1.8 | 6.0 | 1.8 |
| YLML8022 | 1.5 | 1.1 | 220 | 50 | 7.02 | 2800 | 75 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML8014 | 0.75 | 0.55 | 220 | 50 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL/ML8024 | 1 | 0.75 | 220 | 50 | 5.22 | 1400 | 71 | 0.92 | 1.8 | 6.0 | 1.8 |
| YL/ML90S-2 | 2 | 1.5 | 220 | 50 | 9.4 | 2800 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML90L-2 | 3 | 2.2 | 220 | 50 | 13.7 | 2800 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML90S-4 | 1.5 | 1.1 | 220 | 50 | 7.21 | 1400 | 73 | 0.95 | 1.8 | 6.0 | 1.8 |
| YLML90L-4 | 2 | 1.5 | 220 | 50 | 9.57 | 1400 | 75 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML100L-2 | 4 | 3 | 220 | 50 | 18.4 | 2820 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YLML100L1-4 | 3 | 2.2 | 220 | 50 | 13.9 | 1410 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML100L2-4 | 4 | 3 | 220 | 50 | 18.6 | 1420 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YLML112M-2 | 5 | 3.7 | 220 | 50 | 22.2 | 2820 | 80 | 0.95 | 1.8 | 6.0 | 1.8 |
| YUML112M-4 | 3 | 2.2 | 220 | 50 | 13.9 | 1410 | 76 | 0.95 | 1.8 | 6.0 | 1.8 |
| YLML112M1-4 | 4 | 3 | 220 | 50 | 18.17 | 1420 | 77 | 0.95 | 1.8 | 8.0 | 1.8 |
| YL/ML112M2-4 | 5 | 3.7 | 220 | 50 | 23 | 1430 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML132S1-4 | 4 | 3 | 220 | 50 | 18.17 | 1420 | 77 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML132S2-4 | 5 | 3.7 | 220 | 50 | 23 | 1430 | 78 | 0.95 | 1.8 | 6.0 | 1.8 |
| YL/ML132M-4 | 7.5 | 5.5 | 220 | 50 | 32.5 | 1430 | 81 | 0.95 | 1.8 | 6.0 | 1.8 |
*1110V,110V/220V,60Hz etc.models are available on request.

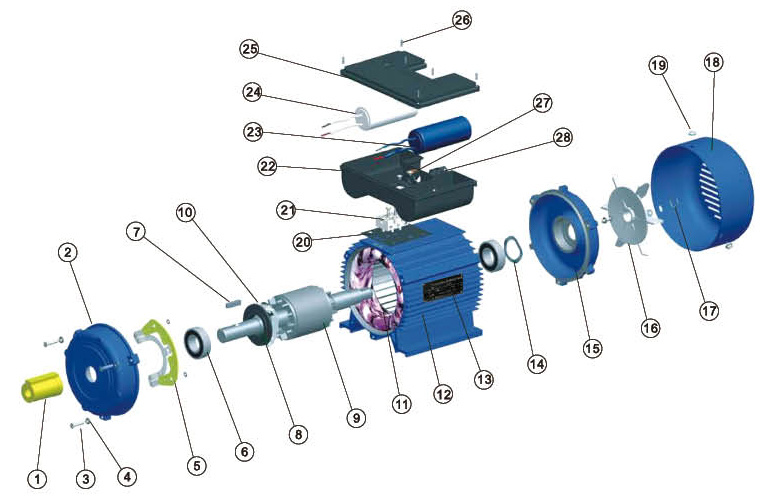

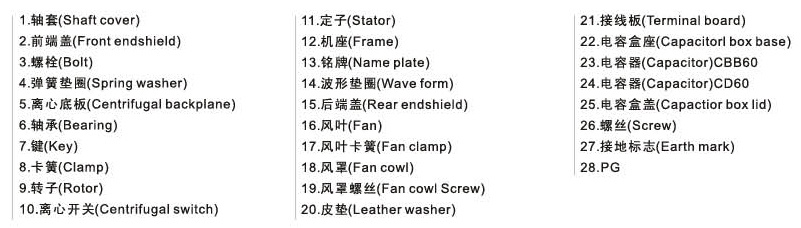

EXPLODED VIEW

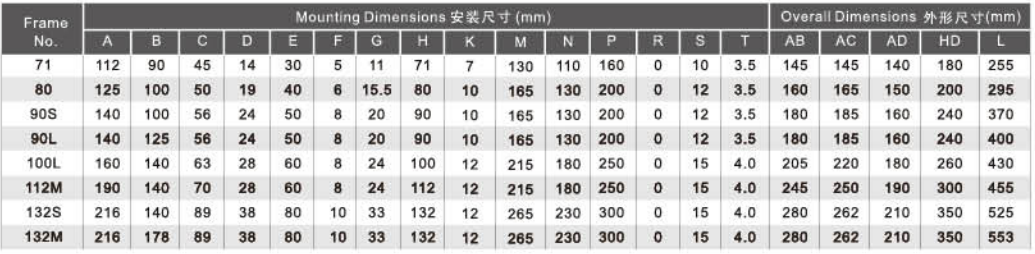

OVERALL&INSTALLTION DIEMSIONS
