YC/YCL Series heavy-duty single-phase capacitors start induction motor
Catalog：
According to the type of working power supply: can be divided into DC motor and AC motor.
keyword：Motor,YE2,YE3
Tel/Wechat/Whatsapp
Detail
PRODUCT OVERVIEW
YC series motor is a fully enclosed sinale-phase asvnchronous motor with the latest desian, With features like simple structure, relablperfomance, easy maintenance and achievement of technical-economic targets, the products have been widely used in the air compressorpump, refigerator, washing machine, medical equipment, wood-working machinery, all kinds of agricultural and so on. YC motor series haveProtection Class of E or B. Cooling Method of IC411.
OPERATING CONDITIONS
Ambient temperature:- 15℃≤ 0≤40℃
Altitude: not exceeding 1000m
Rated voltage: 220V
Rated frequency: 50Hz、 60Hz
Protection class: IP44、 IP54
Insulation class: B、F
Cooling method: ICO141
Duty: S1 (continuous)
TECHNICAL DATE
| Type | Output | Voiege (V) |
Frequency (HZ) |
Current (A) |
Speed (r/min) |
Eff (%) |
Power factor |
Tatart/Tn | Ist/In | Tmax/Tn | |
| HP | KW | ||||||||||
| YC80a-2 | 0.5 | 0.37 | 220 | 50 | 3.7 | 2880 | 66 | 0.74 | 3 | 6.5 | 2 |
| YC80b-2 | 0.75 | 0.55 | 220 | 50 | 5.3 | 2880 | 67 | 0.74 | 3 | 6.5 | 2 |
| YC80c-2 | 1 | 0.75 | 220 | 50 | 6.7 | 2880 | 68 | 0.75 | 3 | 6.5 | 2 |
| YC90S-2 | 1.5 | 1.1 | 220 | 50 | 9.1 | 2880 | 71 | 0.8 | 2.8 | 7 | 2 |
| YC90L-2 | 2 | 1.5 | 220 | 50 | 12.1 | 2880 | 72 | 0.82 | 2.8 | 7 | 2 |
| YC100L-2 | 3 | 2.2 | 220 | 50 | 17.1 | 2900 | 74 | 0.82 | 2.5 | 7 | 2 |
| YC112M1-2 | 4 | 3 | 220 | 50 | 21.4 | 2900 | 76 | 0.84 | 2.2 | 7 | 2 |
| YC112M2-2 | 45 | 3.7 | 220 | 50 | 24.8 | 2900 | 79 | 0.86 | 2.2 | 7 | 2 |
| YC80a-4 | 0.33 | 0.25 | 220 | 50 | 3.4 | 1450 | 56 | 0.62 | 3 | 6 | 2 |
| YC80b-4 | 0.5 | 0.37 | 220 | 50 | 4.5 | 1450 | 60 | 0.64 | 3 | 6 | 2 |
| YC80c-4 | 0.75 | 0.55 | 220 | 50 | 6.0 | 1450 | 64 | 0.65 | 3 | 6 | 2 |
| YC90S-4 | 1 | 0.75 | 220 | 50 | 7.7 | 1450 | 67 | 0.72 | 2.8 | 6.5 | 2 |
| YC90L-4 | 1.5 | 1.1 | 220 | 50 | 10.5 | 1450 | 70 | 0.72 | 2.8 | 6.5 | 2 |
| YC100L-4 | 2 | 1.5 | 220 | 50 | 13.5 | 1450 | 72 | 0.73 | 2.8 | 6.5 | 2 |
| YC112M-4 | 3 | 2.2 | 220 | 50 | 19.3 | 1450 | 73 | 0.74 | 2.5 | 6.5 | 2 |
| YC132Sa-4 | 4 | 3 | 220 | 50 | 25.2 | 1450 | 76 | 0.8 | 2.2 | 6.5 | 2 |
| YC132Sb-4 | 5 | 3.7 | 220 | 50 | 30 | 1450 | 79 | 0.82 | 2.2 | 6.5 | 2 |
| YC-132M-4 | 7.5 | 5.5 | 220 | 50 | 32.5 | 1450 | 82 | 0.95 | 2.2 | 6.5 | 2 |

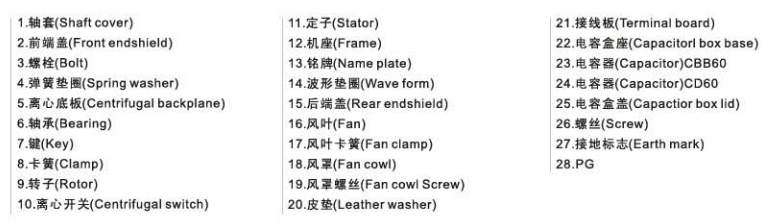

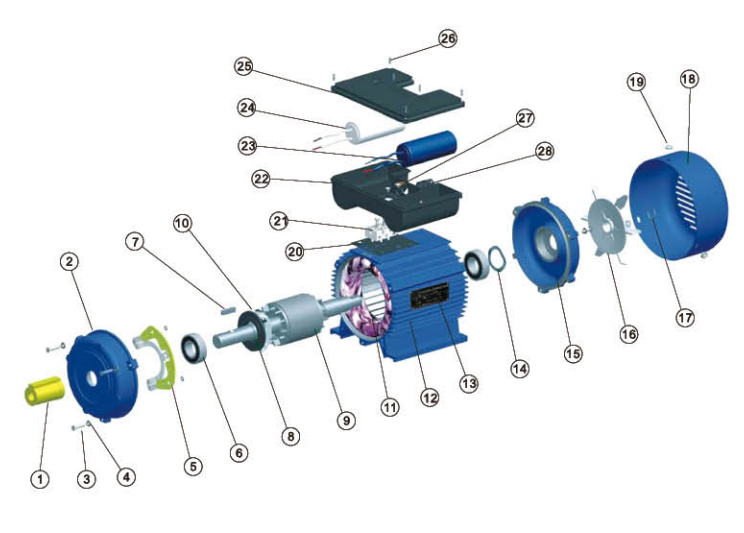

EXPLODED VIEW

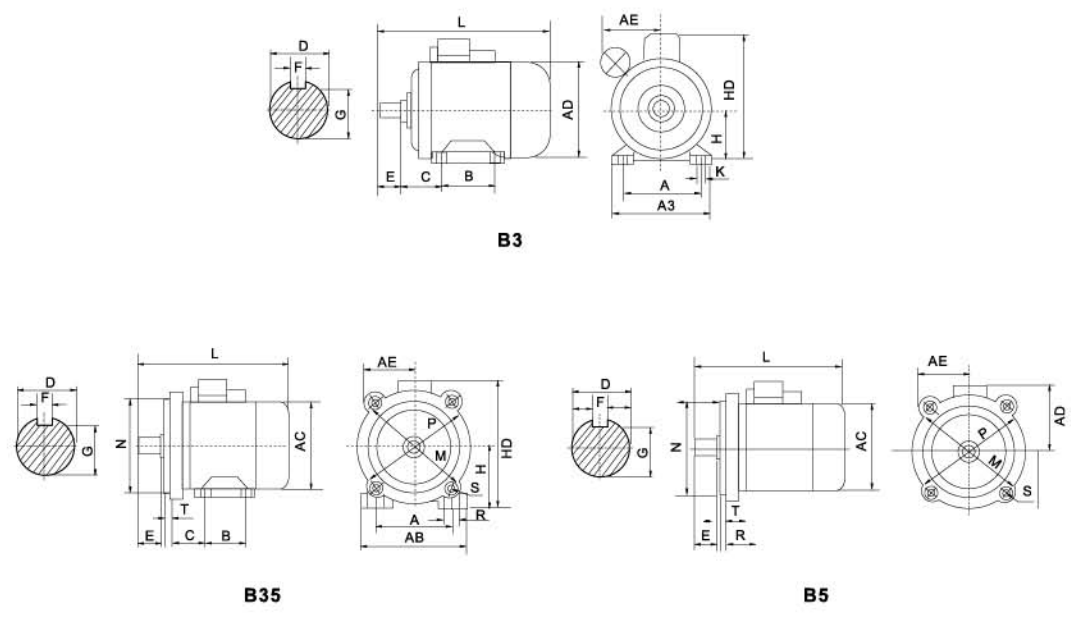

OVERALL & INSTALLTION DIEMSIONS
