YVF2 Series Variable frequency speed regulation three phase asynchronous motor
Catalog：
According to the type of working power supply: can be divided into DC motor and AC motor.
keyword：Motor,YE2,YE3
Tel/Wechat/Whatsapp
Detail
PRODUCT OVERVIEW
YVF, series three-phase frequency controlled asynchronous motor possesses a wide range of speed regulationit can match with a variety ofconvertor to compreise an A.C sleepless adjustable frequency driving system.At low speed(5-50Hz),this motor can run smoothly under constanttorque oscilation,and has a larger starting torque and a smaler starting current and delivers constant output power at high speed(50-100Hz2)tsmounting arrangements and mounting dimensions are all according to Y seres three-phase asynchronous motor.As cooling fan in buitin so undeliifferent speeds the coolong effects is good
OPERATING CONDITIONS
Centre height of frame: 80-355mm
Power range: 0.55-31 5kW
Rated voltage: 380V ( special should order )
Rated frequency: 50Hz or 60Hz
Protection class: IP54 or IP55
Insulation class: F
Duty type: S1
TECHNICAL DATE
4 poles
| Model | Nominal Capacity kw |
Nominal current A |
Rated Torque N.m |
| YVF2 801-4 | 0.55 | 1.8 | 3.5 |
| YVF2 802-4 | 0.75 | 2.3 | 4.7 |
| YVF2 90S-2 | 1.1 | 3 | 7 |
| YVF2 90L-4 | 1.5 | 4.1 | 9.8 |
| YVF2 100L1-4 | 2.2 | 5.5 | 14 |
| YVF2 100L2-4 | 3 | 7.5 | 19 |
| YVF2 112M-4 | 4 | 9.6 | 25 |
| YVF2 132S-4 | 5.5 | 12.7 | 35 |
| YVF2 132M-4 | 7.5 | 17 | 47.5 |
| YVF2 160M-4 | 11 | 24.8 | 70 |
| YVF2 160L-4 | 15 | 33 | 95 |
| YVF2 180M-4 | 18.5 | 37.7 | 117.5 |
| YVF2 180L-4 | 22 | 44.5 | 140 |
| YVF2 200L-4 | 30 | 59.6 | 190 |
| YVF2 225S-4 | 37 | 73.2 | 235 |
| YVF2 225M-4 | 45 | 88.4 | 286 |
| YVF2 250M-4 | 55 | 107.5 | 350 |
| YVF2 280S-4 | 75 | 146.6 | 477 |
| YVF2 280M-4 | 90 | 172.5 | 572.5 |
6 poles
| Model | Nominal Capacity kw |
Nominal Current A |
Rated Torque N.m |
| YVF2 90S-6 | 0.75 | 2.5 | 7 |
| YVF2 90L-6 | 1.1 | 3.5 | 10.5 |
| YVF2 100L-6 | 1.5 | 4.4 | 14 |
| YVF2 112M-6 | 2.2 | 6.1 | 21 |
| YVF2 132S-6 | 3 | 7.9 | 28.5 |
| YVF2 132M1-6 | 4 | 10.3 | 37.5 |
| YVFz 132M2-6 | 5.5 | 13.8 | 52.5 |
| YVF2 160M-6 | 7.5 | 18.7 | 71 |
| YVF2 160L-6 | 11 | 27 | 105 |
| YVF2 180L-6 | 15 | 34.6 | 142.5 |
| YVF2 200L1-6 | 18.5 | 39.6 | 176 |
| YVF2 200L2-6 | 22 | 46.8 | 210 |
| YVF2 225M-6 | 30 | 62.5 | 285.5 |
| YVF2 250M-6 | 37 | 75.6 | 352.5 |
| YVF2 280S-6 | 45 | 89.6 | 429 |
| YVF2 280M-6 | 55 | 110 | 525 |

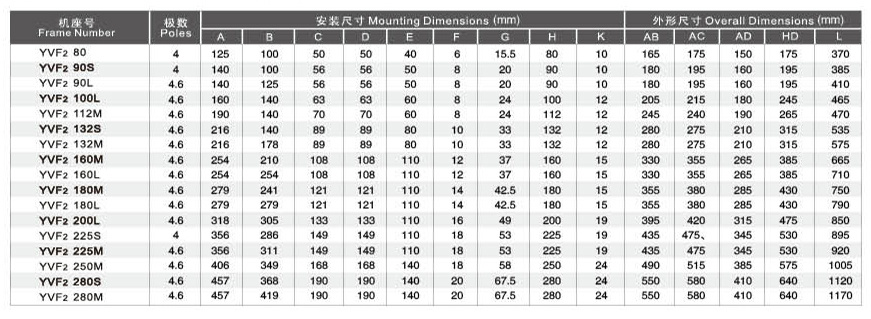

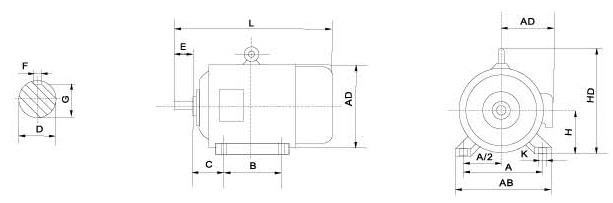

OVERALL & INSTALLTION DIEMSIONS
