MS Series Aluminum shell high efficiency three-phase asynchronous motor

Catalog：

MS Series

>> Messages
>> Contact

According to the type of working power supply: can be divided into DC motor and AC motor.

keyword：Motor,YE2,YE3

Detail

PRODUCT OVERVIEW
MS series aluminum housing three -phase asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to IEC standard. MS motor have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, lttle vibration and at the same time light weight and simple construction. These motors can be used for general drive.


OPERATING CONDITIONS
Ambient temperature: -15℃≤0≤40℃
Altitude: not exceeding 1000m
Rated voltage: 380V
Rated frequency: 50Hz、 60Hz
Protection class: IP54、IP55
Insulation class: Class B/F
Cooling method: ICO141 Duty:S1(continuous)



TECHNICAL DATE

Model Output Full load 75%load 50%load Tatart/Tn lst/in Tmax/Tn
kw HP cutont
(A)		 Speed
(r/min)		 Eff
(%)		 Power
factor		 Eff
(%)		 Power
factor		 Eff
(%)		 Power
factor
380v 60Hz Synchronous Speed 3000r/min(2 poles)
MS56M1-2 0.09 0.12 0.30 2750 58.0 0.78 56.2 0.77 54.0 0.74 2.3 6.0 2.4
MS56M2-2 0.12 0.18 0.37 2750 60.0 0.79 58.5 0.78 56.0 0.75 2.3 6.0 2.4
MS63M1-2 0.18 0.25 0.53 2780 63.0 0.80 62.0 0.80 60.5 0.76 2.3 6.0 2.4
MS63M2-2 0.25 0.33 0.63 2780 65.0 0.81 64.0 0.80 62.5 0.77 2.3 6.0 2.4
MS71M1-2 0.37 0.50 0.99 2800 66.0 0.81 65.0 0.80 63.5 0.78 2.3 6.0 2.4
MS71M2-2 0.55 0.75 1.40 2800 71.0 0.82 70.0 0.82 68.5 0.79 2.3 6.0 2.4
MS80M1-2 0.75 1 1.83 2825 77.4 0.83 72.0 0.83 70.2 0.80 2.3 6.0 2.4
MS80M2-2 1.1 1.5 2.55 2825 79.6 0.84 75.1 0.83 73.0 0.80 2.3 6.5 2.4
MS90S-2 1.5 2 3.43 2840 81.3 0.84 77.0 0.85 70.0 0.81 2.3 6.5 2.4
MS90L-2 2.2 3 4.85 2840 83.2 0.85 80.0 0.85 78.0 0.84 2.3 6.5 2.4
MS100L-2 3.0 4 6.31 2880 84.6 0.87 81.0 0.86 79.3 0.86 2.3 7.0 2.4
MS112M-2 4.0 5.5 8.10 2890 85.8 0.88 83.5 0.87 81.0 0.84 2.3 7.0 2.4
MS132S1-2 5.5 7.5 11.0 2900 87.0 0.88 84.3 0.89 83.0 0.84 2.3 7.0 2.4
MS132S2-2 7.5 10 14.9 2900 88.1 0.88 85.9 0.87 83.7 0.84 2.3 7.0 2.4
MS160M1-2 11 15 21.3 2930 89.4 0.89 86.8 0.89 84.1 0.84 2.3 7.0 2.4
MS160M2-2 15 20 28.8 2930 90.3 0.89 88.0 0.89 86.4 0.85 2.3 7.0 2.4
MS160L-2 18.5 25 34.7 2930 90.9 0.90 89.0 0.88 86.8 0.86 2.3 7.0 2.4
380V 50Hz Synchronous Spead 150r/min(4 poes)
MS56M1-4 0.06 0.08 0.27 1300 53.0 0.70 51.8 0.65 50.0 0.53 2.2 5.5 2.3
MS56M2-4 0.09 0.12 0.36 1300 55.0 0.71 53.8 0.67 52.0 0.55 2.2 5.5 2.3
MS63M1-4 0.12 0.18 0.44 1330 57.0 0.72 56.1 0.69 53.9 0.57 2.2 5.5 2.3
MS63M2-4 0.18 0.25 0.62 1330 60.0 0.73 58.5 0.70 56.7 0.59 2.2 5.5 2.3
MS71M1-4 0.25 0.33 0.79 1360 65.0 0.74 62.4 0.73 59.3 0.59 2.2 5.5 2.3
MS71M2-4 0.37 0.50 1.12 1360 67.0 0.75 65.3 0.74 60.8 0.63 2.2 5.5 2.3
MS80M1-4 0.55 0.75 1.57 1380 71.0 0.75 69.2 0.74 67.2 0.64 2.3 6.0 2.4
MS80M2-4 0.75 1 2.03 1380 79.6 0.76 71.7 0.75 69.8 0.67 2.3 6.0 2.4
MS90S-4 1.1 1.5 2.89 1390 81.4 0.77 73.1 0.75 70.8 0.67 2.3 6.0 2.4
MS90L-4 1.5 2 3.70 1390 82.8 0.79 76.1 0.76 73.7 0.69 2.3 6.0 2.4
MS100L1-4 2.2 3 5.16 1410 84.3 0.81 78.0 0.79 75.5 0.69 2.3 7.0 2.4
MS100L2-4 3.0 4 6.78 1410 85.5 0.82 79.9 0.78 77.5 0.70 2.3 7.0 2.4
MS112M-4 4.0 5.5 8.80 1435 86.6 0.82 81.9 0.79 79.6 0.70 2.3 7.0 2.4
MS132S-4 5.5 7.5 11.7 1445 87.7 0.83 82.8 0.81 80.4 0.73 2.3 7.0 2.4
MS132M-4 7.5 10 15.6 1445 88.7 0.84 84.8 0.82 82.6 0.74 2.3 7.0 2.4
MS160M-4 11 15 22.3 1450 89.8 0.84 85.8 0.83 83.8 0.75 2.2 7.0 2.4
MS160L-4 15 20 30.1 1450 90.6 0.85 90.0 0.83 88.5 0.75 2.2 7.0 2.3



Model Output Full load 75% load 50% load Tatart/Tn lst/in Tmax/Tn
kw HP cutont
(A)		 Speed
(r/min)		 Eff
(%)		 Power
factor		 Eff
(%)		 Power
factor		 Eff
(%)		 Power
factor
380v 60Hz Sycnronous Speea 1000 r/min (6pales)
MS71M1-6 0.18 0.25 0.74 900 56.0 0.66 54.6 0.66 53.0 0.65 2.0 5.5 2.2
MS71M2-6 0.25 0.33 0.95 900 59.0 0.68 57.5 0.68 56.1 0.62 2.0 5.5 2.2
MS80M1-6 0.37 0.50 1.30 900 62.0 0.70 60.5 0.69 59.1 0.64 2.0 5.5 2.2
MS80M2-6 0.55 0.75 1.79 900 65.0 0.72 63.3 0.71 60.1 0.64 2.0 5.5 2.2
MS90S-6 0.75 1 2.29 910 75.9 0.72 67.3 0.72 66.3 0.65 2.1 5.5 2.2
MS90L-6 1.1 1.5 3.18 910 78.1 0.73 70.2 0.72 38.0 0.66 2.1 5.5 2.2
MS100L-6 1.5 2 3.94 940 79.8 0.75 74.0 0.75 71.0 0.68 2.1 5.5 2.2
MS112M-6 2.2 3 5.60 940 81.8 0.73 77.1 0.77 75.1 0.69 2.2 6.5 2.3
MS132S-6 3.0 4 7.40 960 83.3 0.76 78.9 0.77 76.1 0.69 2.2 6.5 2.3
MS132M1-6 4.0 5.5 9.80 960 84.6 0.76 80.0 0.76 77.5 0.70 2.2 6.5 2.3
MS132M2-6 5.5 7.5 12.9 960 86.0 0.77 82.1 0.77 79.4 0.70 2.2 6.5 2.3
MS160M-6 7.5 10 17.0 970 87.2 0.77 83.4 0.77 82.4 0.70 2.2 6.5 2.3
MS160L-6 11 15 24.2 970 88.7 0.78 86.6 0.78 84.8 0.72 2.2 6.5 2.3
380v 60Hz Sycnronous Speea 750 r/min (8pales)
MS80M1-8 0.18 0.25 0.88 630 51.0 0.61 47.9 0.52 44.6 0.54 1.8 4.0 1.9
MS80M2-8 0.25 0.33 1.15 640 54.0 0.61 48.9 0.54 45.3 0.55 1.8 4.0 1.9
MS90S-8 0.37 0.50 1.49 660 62.0 0.61 55.6 0.57 50.7 0.56 1.8 4.0 1.9
MS90L-8 0.55 0.75 2.18 660 63.0 0.61 55.9 0.58 50.9 0.59 1.8 4.0 2.0
MS100L1-8 0.75 1 2.17 690 71.0 0.67 60.9 0.65 59.7 0.56 1.8 4.0 2.0
MS100L2-8 1.1 1.5 2.39 690 73.0 0.69 72.0 0.61 59.8 0.57 1.8 5.0 2.0
MS112M-8 1.5 2 4.50 680 75.0 0.69 74.2 0.64 59.8 0.58 1.8 5.0 2.0
MS132S-8 2.2 3 6.00 710 78.0 0.71 77.2 0.61 60.1 0.58 1.8 6.0 2.0
MS132M-8 3.0 4 7.90 710 79.0 0.73 78.2 0.62 60.0 0.59 1.8 6.0 2.0
MS160M1-8 4.0 5.5 10.3 720 81.0 0.73 80.2 0.63 61.0 0.58 1.9 6.0 2.0
MS160M2-8 5.5 7.5 13.6 720 83.0 0.74 81.2 0.61 62.0 0.59 2.0 6.0 2.0
MS160L-8 7.5 10 17.8 720 85.5 0.75 84.5 0.63 65.9 0.59 2.0 6.0 2.0

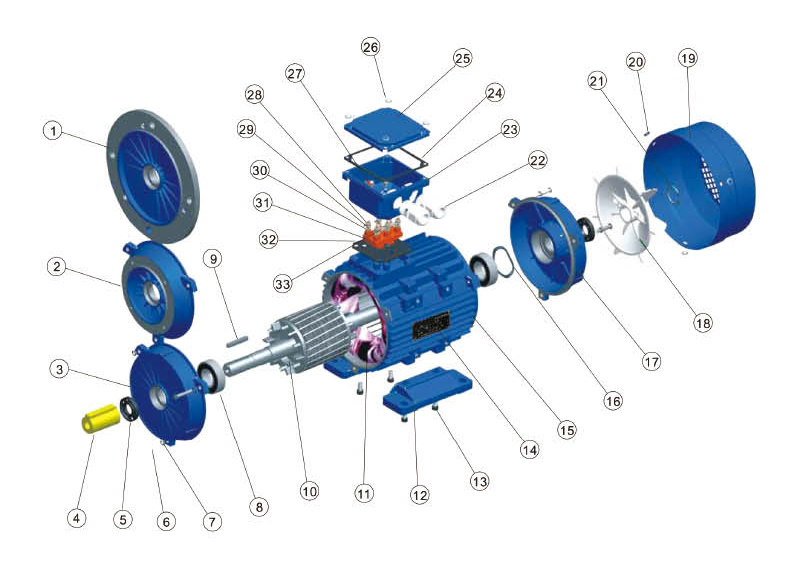

EXPLODED VIEW

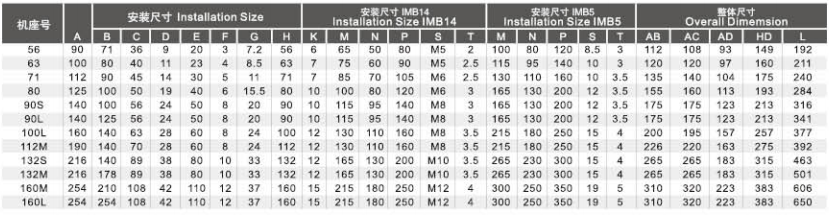

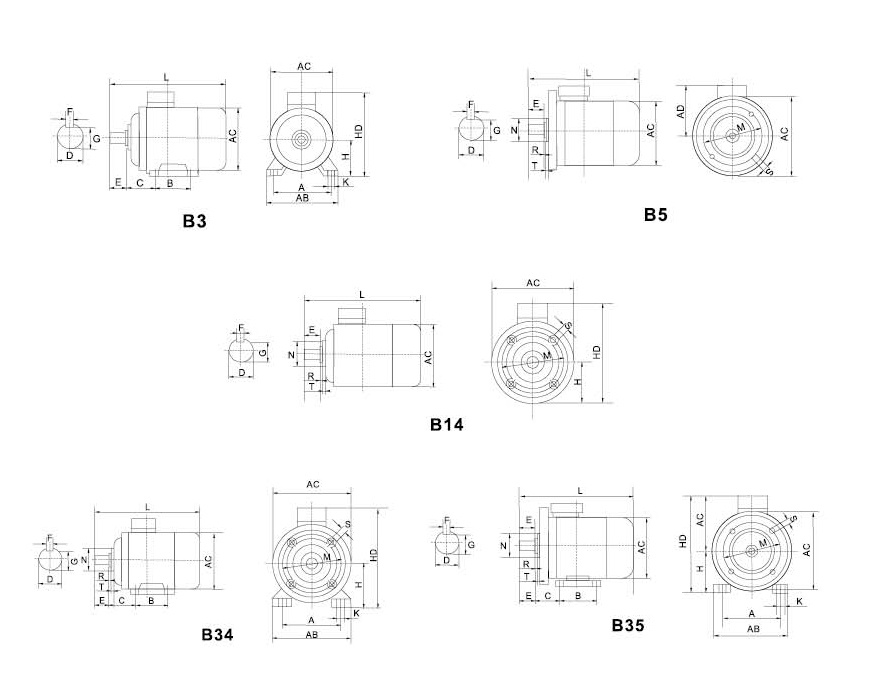

OVERALL& INSTALLTION DIEMSIONS
