YDT Series Pole-changing multi-speed three phase asynchronous electric motor
Catalog：
According to the type of working power supply: can be divided into DC motor and AC motor.
keyword：Motor,YE2,YE3
Tel/Wechat/Whatsapp
Detail
PRODUCT OVERVIEW
Among series YDT motors, the pole- -and speed- changing 3 -phase asynchronousmotor specially matched for the load of fanblowers or pumps is an outgrowth fromseries Y motors.
The series motors are novel in design their rotational speed will decrease by deg-rees of quadratic relation with the increase in the load of fanblowers or pumps, their torque properties: the power of motor is directly proportional to the quadrate of rotational speed Due to it that they can reasonably match the corresponding power according to the complemental requirement of rotational speed, they can save a lot of energy, therefore may be rated as an ideal dynamic force for the fanblowers of load type they are widely used in metallurgy, mining, textile, dyeing, chemical industry, light industry, architecture, civil facilities and other departments virtues of high efficiency, saving energy, low noise, lttle vibration, fine isolation reliable operation easy maintenance, etc.
Series YDT motors conform to the international standards of IEC, Their main qualifications have reached the advanced standard among the same products both at home and abroad.
This company produces series YDT motors strictly according to the atandards of JB/T8681-1998.
OPERATING CONDITIONS
Y Asynchronous motor
D Speed
T Load of fanblowers or pumps
250 Frame size
M Frame no. S- Short、M-Medium、 L-Long
-6/8 Ploes
SERICE CONDITION
1、Ambient temperature:to be altered with the change of seasons but do not exceed40'C
2、Altitude:to be used lower than 1,000 meters above sea level.
3、Rated frenquency:50HZ
4、Rated voltage;380V
5、Duty:continuous(s1)
6、Metod of starting:can be started directly on full voltage for all sizes of motors.

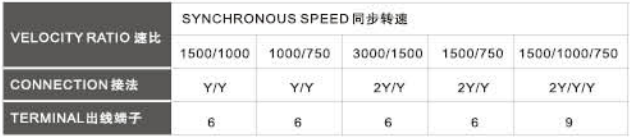

DESIGNATION FOR LEADING-OUT WIRE
COMPANION FLANGE AND LEADING-OUT TERMINAL
TECHNICAL DATE
| Type | Ovtpvt (Kw) |
Current (A) |
speed (r/min) |
Efficienty (%) |
powerFactor (CosФ) |
Noisaleve DB | Locked torque Rated torque TST/TFL |
Locked current Rated forque IST/TFL |
| YDT80M-2/4 | 0.75/0.17 | 1.9/0.7 | 2850/1410 | 68.0/58.0 | 0.82/0.60 | 79 | 2.0/1.4 | 7.5/5.5 |
| YDT60M,-2/4 | 0.95/0.25 | 2.4/0.9 | 2850/1410 | 70.0/64.0 | 0.81/0.65 | 79 | 2.0/1.4 | 7.5/5.5 |
| YDT90S.2/4 | 1.40/0.30 | 3.5/0.9 | 2810/1430 | 71.0/70.0 | 0.82/0.72 | 79 | 2.0/1.4 | 7.5/5.5 |
| YDT90L-2/4 | 1.90/0.40 | 4.3/1.1 | 2810/1430 | 75.0/72.0 | 0.86/0.73 | 83 | 2.0/1.4 | 7.5/5.5 |
| YDT100L-2/4 | 2.50/0.65 | 5.3/1.8 | 2890/1420 | 82.0/74.0 | 0.87/0.72 | 83 | 2.0/1.4 | 7.5/5.5 |
| YDT100L-2/4 | 3.10/0.80 | 6.4/2.2 | 2890/1420 | 82.0/76.0 | 0.87/0.72 | 87 | 2.0/1.4 | 7.5/5.5 |
| YDT112M-2/4 | 4.40/1.10 | 9.2/2.5 | 2875/1440 | 82.0/80.0 | 0.88/0.74 | 87 | 2.0/1.4 | 7.5/5.5 |
| YDT132S-2/4 | 5.90/1.40 | 11.7/3.5 | 2910/1450 | 83.0/80.0 | 0.91/0.74 | 87 | 1.9/1.3 | 7.5/5.5 |
| YDT132M-2/4 | 8.00/2.00 | 15.3/4.7 | 2910/1450 | 85.0/83.0 | 0.91/0.77 | 91 | 1.9/1.3 | 7.5/5.5 |
| YDT160M-2/4 | 12.50/2.80 | 24.1/6.6 | 2930/1460 | 86.0/85.0 | 0.91/0.75 | 91 | 1.9/1.3 | 7.5/5.5 |
| YDT160L-2/4 | 16.50/3.80 | 31.0/8.7 | 2930/1460 | 87.0/86.0 | 0.91/0.76 | 95 | 1.9/1.3 | 7.5/5.5 |
| YDT90S-4/6 | 1.10/0.32 | 2.9/1.1 | 1400/930 | 70.0/63.0 | 0.78/0.66 | 95 | 1.8/1.6 | 7.0/6.0 |
| YDT90L-4/6 | 1.40/0.45 | 3.5/1.5 | 1400/930 | 72.0/68.0 | 0.81/0.66 | 75 | 1.8/1.6 | 7.0/6.0 |
| YDT100L-4/6 | 2.20/0.70 | 5.3/2.2 | 1430/945 | 80.0/73.0 | 0.79/0.66 | 75 | 1.8/1.6 | 7.0/6.0 |
| YDT100L-4/6 | 2.50/0.90 | 6.0/2.9 | 1430/945 | 81.0/74.0 | 0.78/0.67 | 78 | 1.8/1.6 | 7.0/6.0 |
| YDT112M-4/6 | 3.20/1.10 | 7.1/3.1 | 1440/955 | 82.0/78.0 | 0.82/0.68 | 78 | 1.8/1.6 | 7.0/6.0 |
| YDT132S-4/6 | 4.70/1.50 | 10.0/4.1 | 1450/970 | 84.0/81.0 | 0.83/0.68 | 82 | 1.8/1.6 | 7.0/6.0 |
| YDT132M-4/6 | 6.70/2.20 | 13.8/5.7 | 1450/970 | 85.0/83.0 | 0.85/0.69 | 82 | 1.8/1.6 | 7.0/6.0 |
| YDT160M-4/6 | 9.50/3.10 | 19.3/8.0 | 1455/975 | 87.0/83.0 | 0.84/0.69 | 82 | 1.8/1.6 | 7.5/7.0 |
| YDT160L-4/6 | 12.00/4.00 | 24.4/10.0 | 1455/975 | 88.0/83.0 | 0.84/0.69 | 86 | 1.8/1.6 | 7.5/7.0 |
| YDT180M-4/6 | 15.50/5.10 | 29.0/11.5 | 1460/980 | 87.0/81.0 | 0.84/0.72 | 86 | 1.5/1.5 | 7.5/7.0 |
| YDT180L-4/6 | 18.50/6.20 | 34.3/13.9 | 1460/980 | 87.0/81.0 | 0.85/0.74 | 90 | 1.5/1.5 | 7.5/7.0 |
| YDT200L-4/6 | 26.00/8.70 | 48.2/19.1 | 1465/980 | 88.0/83.0 | 0.85/0.77 | 90 | 1.5/1.5 | 7.5/7.0 |
| YDT225S-4/6 | 33.00/11.00 | 60.7/24.2 | 1470/980 | 89.0/84.0 | 0.86/0.84 | 92 | 1.5/1.5 | 7.5/7.0 |
| YDT225M-4/6 | 39.00/13.00 | 71.3/27.3 | 1470/980 | 90.0/85.0 | 0.86/0.85 | 92 | 1.5/1.5 | 7.5/7.0 |
| YDT250M-4/6 | 47.00/16.00 | 84.2/32.3 | 1475/985 | 90.0/85.0 | 0.89/0.87 | 92 | 1.5/1 5 | 7.5/7.0 |
| YDT280S-4/6 | 55.00/18.50 | 99.6/37.3 | 1480/985 | 90.0/85.0 | 0.88/0.86 | 94 | 1.5/1.5 | 7.5/7.0 |
| YDT280M-4/6 | 70.00/25.00 | 125.0/48.4 | 1480/985 | 91.0/87.0 | 0.88/0.87 | 94 | 1.5/1.5 | 7.5/7.0 |
| YDT280M:-4/6 | 84.00/28.00 | 150.6/54.8 | 1480/985 | 91.0/87.0 | 0.88/0.87 | 98 | 1.5/1.5 | 7.5/7.0 |
| YDT315S-4/6 | 95.00/32.00 | 177.4/65.3 | 1485/985 | 91.0/89.0 | 0.86/0.79 | 98 | 1.5/1.5 | 7.5/7.0 |
| YDT315M-4/6 | 115.00/38.00 | 217.5/77.9 | 1485/985 | 92.0/90.0 | 0.86/0.78 | 98 | 1.5/1.5 | 7.5/7.0 |
| YDT315L:-4/8 | 135.00/45.00 | 260.0/90.5 | 1485/985 | 92.0/90.0 | 0.86/0.80 | 100 | 1.5/1.5 | 7.5/7.0 |
| YDT315L=4/6 | 160.00/55.00 | 294.0/113.4 | 1485/985 | 93.0/91.0 | 0.86/0.80 | 100 | 1.5/1.5 | 7.5/7.0 |
| YDT90S·4/8 | 1.00/0.22 | 2.5/1.0 | 1400/670 | 70.0/55.0 | 0.82/0.62 | 100 | 1.9/1.5 | 7.0/5.0 |
| YDT90L-4/8 | 1.30/0.30 | 3.1/1.2 | 1400/670 | 72.0/58.0 | 0.82/0.63 | 75 | 1.9/1.5 | 7.0/5.0 |
| YDT100L1-4/8 | 2.00/0.55 | 4.7/2.1 | 1420/690 | 80.0/65.0 | 0.80/0.61 | 75 | 1.9/1.5 | 7.0/5.0 |
| YDT100L:-4/8 | 2.40/0.65 | 5.5/2.4 | 1420/690 | 80.0/66.0 | 0.81/0.61 | 78 | 1.9/1.5 | 7.0/5.0 |
| YDT112M-4/8 | 3.20/0.90 | 7.4/3.3 | 1440/700 | 83.0/71.0 | 0.78/0.59 | 78 | 1.9/1.5 | 7.0/5.0 |
| YDT132S-4/8 | 4.50/1.10 | 9.7/3.7 | 1450/715 | 84.0/75.0 | 0.82/0.59 | 82 | 2.0/1.2 | 7.0/5.0 |
| YDT132M-4/8 | 6.30/1.50 | 13.2/4.9 | 1450/715 | 85.0/78.0 | 0.83/0.59 | 82 | 2.0/1.2 | 7.0/5.0 |
| YDT160M-4/8 | 8.90/2.00 | 18.2/5.4 | 1440/720 | 85.0/82.0 | 0.85/0.67 | 82 | 2.0/1.2 | 7.0/5.0 |
| YDT160L-4/8 | 12.00/2.70 | 23.5/6.9 | 1440/720 | 86.0/84.0 | 0.86/0.67 | 86 | 2.0/1.2 | 7.0/5.0 |
| Type | Ovtpvt (Kw) |
Current (A) |
speed (r/min) |
Efficienty (%) |
powerFactor (CosФ) |
Noisaleve DB | Locked torque Rated torque TST/TFL |
Locked current Rated forque IST/TFL |
| YDT180M-4/8 | 16.00/4.00 | 31.8/10.9 | 1470/725 | 88.0/84.0 | 0.85/0.65 | 90 | 2.0/1.2 | 7.0/5.0 |
| YDT180L-4/8 | 19.50/5.00 | 38.6/13.4 | 1470/725 | 89.0/85.0 | 0.85/0.66 | 2.0/1.2 | 7.0/5.0 | |
| YDT200L-4/8 | 29.00/7.50 | 56.8/19.6 | 1475/730 | 90.0/87.0 | 0.85/0.66 | 92 | 2.0/1.2 | 7.0/5.0 |
| YDT225M-4/8 | 40.00/9.50 | 74.6/25.5 | 1475/735 | 91.0/88.0 | 0.88/0.64 | 2.0/1.3 | 7.5/5.0 | |
| YDT250M-4/8 | 52.00/14.50 | 97.3/37.0 | 1480/735 | 91.0/88.0 | 0.87/0.66 | 2.0/1.3 | 7.5/5.0 | |
| YDT280S-4/8 | 65.00/17.00 | 122.8/41.8 | 1485/735 | 91.0/89.0 | 0.87/0.68 | 98 | 2.0/1.3 | 7.5/5.0 |
| YDT280M-4/8 | 75.00/18.50 | 137.4/43.9 | 1485/740 | 91.0/90.0 | 0.88/0.70 | 2.0/1.3 | 7.5/5.0 | |
| YDT315S-4/8 | 92.00/25.00 | 174.8/58.7 | 1485/740 | 91.0/90.0 | 0.86/0.70 | 2.0/1.3 | 7.5/5.0 | |
| YDT315M-4/8 | 110.00/30.00 | 208.3/70.1 | 1485/740 | 92.0/91.0 | 0.86/0.70 | 100 | 2.0/1.3 | 7.5/5.0 |
| YDT315L1-4/8 | 135.00/36.00 | 253.3/84.0 | 1485/740 | 92.0/91.0 | 0.87/0.70 | 2.0/1.3 | 7.5/5.0 | |
| YDT315L:-4/8 | 155.00/41.00 | 288.0/94.7 | 1485/740 | 92.0/91.0 | 0.87/0.71 | 2.0/1.3 | 7.5/5.0 | |
| YDT90S-6/8 | 0.65/0.25 | 2.3/1.3 | 930/700 | 65.0/52.0 | 0.63/0.85 | 1.8/1.6 | 7.0/6.0 | |
| YDT90L-6/8 | 0.80/0.35 | 2.9/1.6 | 930/700 | 67.0/56.0 | 0.62/0.58 | 73 | 1.8/1.6 | 7.0/6.0 |
| YDT100L-6/8 | 1.30/0.55 | 4.1/2.3 | 950/700 | 71.0/62.0 | 0.66/0.58 | 1.8/1.6 | 7.0/6.0 | |
| YDT100La-6/8 | 1.60/0.75 | 3.2/2.9 | 950/700 | 74.0/66.0 | 0.67/0.59 | 75 | 1.8/1.6 | 7.0/6.0 |
| YDT112M-6/8 | 2.20/0.90 | 6.0/3.4 | 950/705 | 74.0/67.0 | 0.68/0.69 | 1.8/1.6 | 7.0/6.0 | |
| YDT132S-6/8 | 2.60/1.20 | 6.9/4.1 | 960/720 | 79.0/73.0 | 0.71/0.60 | 1.8/1.6 | 7.0/6.0 | |
| YDT132M-6/8 | 3.30/1.60 | 8.0/5.3 | 960/720 | 80.0/76.0 | 0.76/0.60 | 1.8/1.6 | 7.0/6.0 | |
| YDT132M2-6/8 | 4.50/2.20 | 11.0/7.1 | 960/720 | 82.0/77.0 | 0.75/0.60 | 1.8/1.6 | 7.0/6.0 | |
| YDT160M-6/8 | 6.50/3.20 | 14.9/9.5 | 970/725 | 84.0/80.0 | 0.76/0.61 | 83 | 1.8/1.6 | 7.0/6.0 |
| YDT160L-6/8 | 9.00/4.50 | 20.3/13.0 | 970/725 | 86.0/82.0 | 0.77/0.62 | 1.8/1.6 | 7.0/6.0 | |
| YDT180L-6/8 | 13.00/6.50 | 26.0/15.1 | 970/725 | 86.0/81.0 | 0.77/0.65 | 86 | 1.5/1.5 | 7.0/6.0 |
| YDT200L-6/8 | 17.00/8.50 | 35.5/20.6 | 970/730 | 87.0/82.0 | 0.80/0.66 | 88 | 1.5/1.5 | 7.0/6.0 |
| YDT200L:-6/8 | 22.00/11.00 | 44.3/27.8 | 970/730 | 88.0/83.0 | 0.80/0.68 | 1.5/1.5 | 7.0/6.0 | |
| YDT225M-6/8 | 30.00/15.00 | 62.3/32.2 | 980/730 | 89.0/87.0 | 0.83/0.78 | 92 | 1.5/1.5 | 7.0/6.0 |
| YDT250M-6/8 | 37.00/18.00 | 72.1/38.5 | 980/735 | 90.0/87.0 | 0.86/0.80 | 1.5/1.5 | 7.0/6.0 | |
| YDT280S-6/8 | 45.00/22.00 | 86.8/46.2 | 985/735 | 90.0/88.0 | 0.86/0.81 | 1.5/1.5 | 7.0/6.0 | |
| YDT280M,-6/8 | 55.00/28.00 | 104.7/57.2 | 985/735 | 91.0/89.0 | 0.82/0.81 | 1.5/1.5 | 7.0/6.0 | |
| YDT280M-6/8 | 65.00/32.00 | 122.0/66.6 | 985/735 | 91.0/89.0 | 0.82/0.81 | 1.5/1.5 | 7.0/6.0 | |
| YDT315S-6/8 | 75.00/37.00 | 145.1/40.4 | 985/735 | 91.0/90.0 | 0.84/0.78 | 100 | 1.5/1.5 | 7.0/6.0 |
| YDT315M-6/8 | 90.00/45.00 | 171.6/90.4 | 985/735 | 92.0/91.0 | 0.85/0.82 | 1.5/1.5 | 7.0/6.0 | |
| YDT315L-6/8 | 110.00/55.00 | 209.5/115.7 | 985/735 | 92.0/91.0 | 0.85/0.78 | 1.5/1.5 | 7.0/6.0 | |
| YDT315L=-6/8 | 132.00/66.00 | 252.0/137.4 | 985/735 | 92.0/91.0 | 0.85/0.78 | 1.5/1.5 | 7.0/6.0 | |
| YDT112M-4/6/8 | 2.30/0.80/0.60 | 5.9/3.2/2.7 | 1455/960/7.5 | 79.0/65.0/61.0 | 0.73/0.57/0.53 | 2.0/1.7/1.3 | 7.5/6.5/4.0 | |
| YDT132S-4/6/8 | 3.10/1.10/0.80 | 7.1/3.9/3.1 | 1460/970/720 | 81.0/71.0/68.0 | 0.79/0.60/0.57 | 82 | 2.0/1.7/1.3 | 7.5/6.5/4.0 |
| YDT132M-4/6/8 | 4.50/1.50/1.10 | 9.8/4.7/3.9 | 1460/970/720 | 83.0/74.0/72.0 | 0.82/0.65/0.57 | 2.0/1.7/1.3 | 7.5/6.5/4.0 | |
| YDT160M-4/6/8 | 7.50/2.60/1.50 | 16.0/7.3/4.8 | 1460/980/730 | 84.0/79.0/79.0 | 0.82/0.67/0.58 | 1.8/1.6/0.95 | 7.5/6.5/4.0 | |
| YDT160L-4/6/8 | 10.20/3.50/2.0 | 20.6/9.5/6.0 | 1460/980/730 | 86.0/81.0/81.0 | 0.85/0.68/0.60 | 86 | 1.8/1.6/0.95 | 7.5/6.5/4.0 |
| YDT180M-4/6/8 | 13.00/4.50/2.60 | 24.2/10.6/7.7 | 1460/980/730 | 86.0/80.0/80.0 | 0.90/0.80/0.63 | 1.8/1.6/0.95 | 8.0/7.5/5.5 | |
| YDT180L-4/6/8 | 16.00/6.00/3.30 | 29.6/13.6/9.7 | 1460/980/730 | 87.0/81.0/81.0 | 0.90/0.81/0.63 | 90 | 1.8/1.6/0.95 | 8.0/7.5/5.5 |
| YDT200L-4/6/8 | 22.00/8.00/4.50 | 40.6/17.8/13.2 | 1460/980/730 | 87.1/82.0/82.0 | 0.90/0.82/0.62 | 1.8/1.6/0.95 | 8.0/7.5/5.5 | |
| YDT225S-4/6/8 | 28.00/10.00/5.50 | 53.3/21.1/13.4 | 1470/980/740 | 89.0/83.0/85.0 | 0.88/0.85/0.70 | 1.8/1.7/1.1 | 8.0/7.5/5.5 | |
| YDT225M-4/6/8 | 34.00/12.00/7.50 | 63.1/24.7/17.2 | 1470/980/740 | 89.0/83.0/87.0 | 0.89/0.86/0.74 | 92 | 1.8/1.7/1.1 | 8.0/7.5/5.5 |
| YDT250M-4/6/8 | 44.00/15.50/10.00 | 78.1/32.1/22.6 | 1475/985/740 | 90.0/85.0/88.0 | 0.92/0.85/0.75 | 1.8/1.7/1.1 | 8.0/7.5/5.5 | |
| YDT280S-4/6/8 | 55.00/18.00/12.00 | 98.5/37.0/27.3 | 1480/990/740 | 90.0/85.0/88.0 | 0.92/0.85/0.74 | 1.8/1.7/1.1 | 8.0/7.5/5.5 | |
| YDT280M-4/6/8 | 66.00/21.00/15.00 | 116.9/42.5/32.8 | 1480/990/740 | 91.0/86.0/89.0 | 0.92/0.86/0.76 | 94 | 1.8/1.7/1.1 | 8.0/7.5/5.5 |
| YDT315S-4/6/8 | 75.00/27.00/19.00 | 136.0/55.3/43.8 | 1480/990/740 | 90.0/87.0/89.0 | 0.91/0.84/0.73 | 1.8/1.4/1.3 | 8.0/7.5/5.5 | |
| YDT315M4/6/8 | 90.00/32.00/22.00 | 162.0/64.8/50.6 | 1480/990/740 | 91.0/88.0/90.0 | 0.91/0.84/0.72 | 1.8/1.4/1.3 | 8.0/7.5/5.5 | |
| YDT315L1-4/6/8 | 115.00/40.00/28.00 | 204.2/79.7/62.5 | 1480/990/740 | 91.0/88.0/90.0 | 0.91/0.85/0.74 | 100 | 1.8/1.4/1.3 | 8.0/7.5/5.5 |
| YDT315L2-4/6/8 | 140.00/51.00/35.00 | 253.6/101.8/80.2 | 1480/990/740 | 92.0/89.0/91.0 | 0.90/0.84/0.72 | 1.8/1.4/1.3 | 8.0/7.5/5.5 |
