PRODUCT OVERVIEW
YE2 series three-phase asynchronous motor is a series of products developed by adopting new technology and new materials, which is the upgraded product of Y and Y2 series motors. YE2 series motors are all made of cold rolled silicon steel sheets, which are popular in the international motor industry, and the system is of totally closed, fan-cooled squirrel cage structure, with high efficiency (efficiency up to the standard of EFF in Europe), low noise, high torque, good starting, and compact structure. The structure is compact. It is easy to use and maintain. The whole machine adopts class F insulation, and is designed according to the international practice of insulation structure evaluation method. This improves the safety and reliability of the whole machine. The protection level reaches IP55, reaching the advanced level of similar foreign products, and is a new energy-saving product.YE2 series motors can be widely used in machine tools, fans, pumps, reducer compressors and transportation, agricultural machinery, food processing, packaging and other mechanical transmission equipment. Packaging all kinds of mechanical transmission equipment.
OPERATING CONDITIONS
Ambient temperature: -15℃~40℃
Altitude: not more than 1000m
Rated voltage: 380V, (400V, 415V, 440V, 660V customized)
Rated frequency: 50HZ, (60HZ customized)
Connection: 3KW and the following specifications for the star connection. 4KW and above specifications for the triangle connection.
Working method: S1

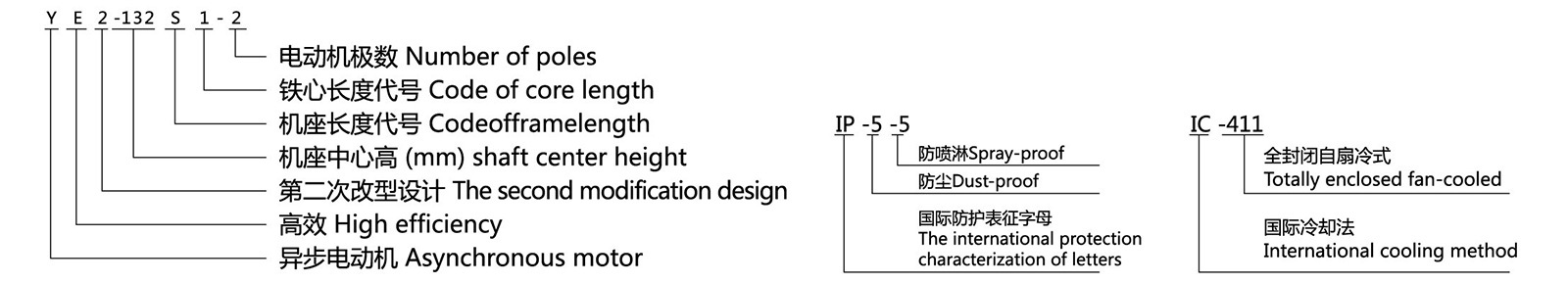

Protection grade: IP55
Cooling method: IC411
TECHNICAL DATE
| Model | Rated power | Current rating Ist/IN | rotate speed (r/min) | efficiency η(%) | Factor (CosΦ) | Locked current | Locked torque | Max torque | Minimum torque | noises dB(A) | |
| KW | HP | ||||||||||
|
YE2-80M1-2 |
0.75 |
1 |
1.8 |
2840 |
77.4 |
0.82 |
6.8 |
2.3 |
2.3 |
1.5 |
64 |
|
YE2-80M2-2 |
1.1 |
1.5 |
2.53 |
2840 |
79.6 |
0.83 |
7.1 |
2.3 |
2.3 |
1.5 |
64 |
|
YE2-90S2-2 |
1.5 |
2 |
3.34 |
2840 |
81.3 |
0.84 |
7.3 |
2.3 |
2.3 |
1.5 |
69 |
|
YE2-90L2-2 |
2.2 |
3 |
4.73 |
2840 |
83.2 |
0.85 |
7.6 |
2.3 |
2.3 |
1.4 |
69 |
|
YE2-100L-2 |
3 |
4 |
6.19 |
2860 |
84.6 |
0.87 |
7.8 |
2.2 |
2.3 |
1.4 |
76 |
|
YE2-112M-2 |
4 |
5.5 |
8.05 |
2880 |
85.8 |
0.88 |
8.1 |
2.2 |
2.3 |
1.4 |
79 |
|
YE2-132S1-2 |
5.5 |
7.5 |
10.92 |
2910 |
87.0 |
0.88 |
8.2 |
2.2 |
2.3 |
1.2 |
81 |
|
YE2-132S2-2 |
7.5 |
10 |
14.53 |
2910 |
88.1 |
0.89 |
7.8 |
2.2 |
2.3 |
1.2 |
81 |
|
YE2-160M1-2 |
11 |
15 |
21.01 |
2920 |
89.4 |
0.89 |
7.9 |
2.2 |
2.3 |
1.2 |
83 |
|
YE2-160M2-2 |
15 |
20 |
28.36 |
2920 |
90.3 |
0.89 |
7.9 |
2.2 |
2.3 |
1.2 |
83 |
|
YE2-160L-2 |
18.5 |
25 |
34.74 |
2920 |
90.9 |
0.89 |
8.0 |
2.2 |
2.3 |
1.1 |
83 |
|
YE2-180M-2 |
22 |
30 |
41.1 |
2930 |
91.3 |
0.89 |
8.1 |
2.2 |
2.3 |
1.1 |
85 |
|
YE2-200L1-2 |
30 |
40 |
55.7 |
2940 |
92.0 |
0.89 |
7.5 |
2.0 |
2.3 |
1.1 |
86 |
|
YE2-200L2-2 |
37 |
50 |
68.3 |
2960 |
92.5 |
0.89 |
7.5 |
2.0 |
2.3 |
1.1 |
86 |
|
YE2-225M-2 |
45 |
60 |
82.7 |
2960 |
92.9 |
0.89 |
7.5 |
2.2 |
2.3 |
1.0 |
88 |
|
YE2-250M-2 |
55 |
75 |
100.7 |
2960 |
93.2 |
0.89 |
7.6 |
2.2 |
2.3 |
1.0 |
91 |
|
YE2-280S-2 |
75 |
100 |
136.5 |
2960 |
93.8 |
0.89 |
6.9 |
1.8 |
2.3 |
0.9 |
93 |
|
YE2-280M-2 |
90 |
125 |
163.3 |
2960 |
94.1 |
0.89 |
6.9 |
1.8 |
2.3 |
0.9 |
93 |
|
YE2-315S-2 |
110 |
150 |
196.9 |
2970 |
94.3 |
0.90 |
7.0 |
1.8 |
2.2 |
0.9 |
94 |
|
YE2-315M-2 |
132 |
180 |
235.6 |
2970 |
94.6 |
0.90 |
7.0 |
1.8 |
2.2 |
0.9 |
94 |
|
YE2-315L1-2 |
160 |
215 |
281.8 |
2970 |
94.8 |
0.91 |
7.1 |
1.8 |
2.2 |
0.9 |
94 |
|
YE2-315L2-2 |
200 |
270 |
351.5 |
2970 |
95.0 |
0.91 |
7.1 |
1.8 |
2.2 |
0.8 |
94 |
|
YE2-355M-2 |
250 |
340 |
439.4 |
2970 |
95.0 |
0.91 |
7.1 |
1.8 |
2.2 |
0.8 |
102 |
|
YE2-355L-2 |
315 |
420 |
553.6 |
2970 |
95.0 |
0.91 |
7.2 |
1.8 |
2.2 |
0.7 |
102 |
|
YE2-355L1-2 |
355 |
420 |
623.9 |
2970 |
95.0 |
0.91 |
7.2 |
1.8 |
2.2 |
0.7 |
106 |
|
YE2-355L2-2 |
375 |
420 |
659.1 |
2970 |
95.0 |
0.91 |
7.2 |
1.8 |
2.2 |
0.7 |
106 |
| Model | Rated power | Current rating Ist/IN | rotate speed (r/min) | efficiency η(%) | Factor (CosΦ) | Locked current | Locked torque | Max torque | Minimum torque | noises dB(A) | |
| KW | HP | ||||||||||
|
YE2-80M1-4 |
0.55 |
0.75 |
1.28 |
1390 |
79.6 |
0.76 |
6.4 |
2.3 |
2.3 |
1.6 |
61 |
|
YE2-80M2-4 |
0.75 |
1 |
1.88 |
1390 |
79.6 |
0.76 |
6.4 |
2.3 |
2.3 |
1.6 |
61 |
|
YE2-90S-4 |
1.1 |
1.5 |
2.67 |
1390 |
81.4 |
0.77 |
6.6 |
2.3 |
2.3 |
1.6 |
64 |
|
YE2-90L-4 |
1.5 |
2 |
3.53 |
1390 |
82.8 |
0.78 |
6.7 |
2.3 |
2.3 |
1.6 |
64 |
|
YE2-100L-4 |
2.2 |
3 |
4.96 |
1410 |
84.3 |
0.80 |
7.3 |
2.3 |
2.3 |
1.5 |
69 |
|
YE2-100L2-4 |
3 |
4 |
6.58 |
1410 |
85.5 |
0.81 |
7.5 |
2.3 |
2.3 |
1.5 |
69 |
|
YE2-112M-4 |
4 |
5.5 |
8.66 |
1435 |
86.6 |
0.81 |
7.5 |
2.3 |
2.3 |
1.5 |
70 |
|
YE2-132S-4 |
5.5 |
7.5 |
11.62 |
1440 |
87.7 |
0.82 |
7.5 |
2.0 |
2.3 |
1.4 |
76 |
|
YE2-132M-4 |
7.5 |
10 |
15.48 |
1440 |
88.7 |
0.83 |
7.3 |
2.0 |
2.3 |
1.4 |
76 |
|
YE2-160M-4 |
11 |
15 |
22.42 |
1460 |
89.8 |
0.83 |
7.4 |
2.0 |
2.3 |
1.4 |
78 |
|
YE2-160L-4 |
15 |
20 |
29.95 |
1460 |
90.6 |
0.84 |
7.5 |
2.0 |
2.3 |
1.4 |
78 |
|
YE2-180M-4 |
18.5 |
25 |
36.3 |
1470 |
91.2 |
0.85 |
7.6 |
2.0 |
2.3 |
1.2 |
80 |
|
YE2-180L-4 |
22 |
30 |
42.9 |
1470 |
91.6 |
0.85 |
7.7 |
2.1 |
2.3 |
1.2 |
80 |
|
YE2-200L-4 |
30 |
40 |
58.1 |
1470 |
92.3 |
0.85 |
7.1 |
2.1 |
2.3 |
1.2 |
80 |
|
YE2-225S-4 |
37 |
50 |
70.5 |
1475 |
92.7 |
0.86 |
7.3 |
2.1 |
2.3 |
1.2 |
81 |
|
YE2-225M-4 |
45 |
60 |
85.4 |
1475 |
93.1 |
0.86 |
7.3 |
2.2 |
2.3 |
1.1 |
81 |
|
YE2-250M-4 |
55 |
75 |
103.9 |
1480 |
93.5 |
0.86 |
7.3 |
2.2 |
2.3 |
1.1 |
82 |
|
YE2-280S-4 |
75 |
100 |
139.3 |
1480 |
94.0 |
0.87 |
6.8 |
2.2 |
2.3 |
1.0 |
83 |
|
YE2-280M-4 |
90 |
125 |
165.0 |
1480 |
94.2 |
0.88 |
6.9 |
2.2 |
2.3 |
1.0 |
83 |
|
YE2-315S-4 |
110 |
150 |
198.7 |
1480 |
94.5 |
0.89 |
6.9 |
2.1 |
2.3 |
1.0 |
91 |
|
YE2-315M-4 |
132 |
180 |
238.0 |
1480 |
94.7 |
0.89 |
6.9 |
2.1 |
2.2 |
1.0 |
91 |
|
YE2-315L1-4 |
160 |
215 |
284.6 |
1480 |
94.9 |
0.90 |
6.9 |
2.1 |
2.2 |
1.0 |
91 |
|
YE2-315L2-4 |
200 |
270 |
355.0 |
1480 |
95.1 |
0.90 |
6.9 |
2.1 |
2.2 |
0.9 |
91 |
|
YE2-355M-4 |
250 |
340 |
443.8 |
1490 |
95.1 |
0.90 |
6.9 |
2.0 |
2.2 |
0.9 |
97 |
|
YE2-355L-4 |
315 |
420 |
559.2 |
1490 |
95.1 |
0.90 |
6.9 |
2.0 |
2.2 |
0.8 |
97 |
|
YE2-355L1-4 |
355 |
420 |
637.3 |
1490 |
95.1 |
0.89 |
6.5 |
1.7 |
2.2 |
0.8 |
104 |
|
YE2-355L2-4 |
375 |
420 |
673.2 |
1490 |
95.1 |
0.89 |
6.5 |
1.7 |
2.2 |
0.8 |
104 |
|
YE2-90S-6 |
0.75 |
1 |
2.11 |
910 |
75.9 |
0.71 |
5.8 |
2.0 |
2.1 |
1.5 |
64 |
|
YE2-90L-6 |
1.1 |
1.5 |
2.97 |
910 |
78.1 |
0.72 |
5.9 |
2.0 |
2.1 |
1.3 |
64 |
|
YE2-100L-6 |
1.5 |
2 |
3.97 |
920 |
79.8 |
0.72 |
5.9 |
2.0 |
2.1 |
1.3 |
68 |
|
YE2-112M-6 |
2.2 |
3 |
5.68 |
935 |
81.8 |
0.72 |
6.2 |
2.0 |
2.1 |
1.3 |
72 |
|
YE2-132S-6 |
3 |
4 |
7.60 |
960 |
83.3 |
0.72 |
6.4 |
2.0 |
2.1 |
1.3 |
76 |
|
YE2-132M1-6 |
4 |
5.5 |
9.71 |
960 |
84.6 |
0.74 |
6.6 |
2.0 |
2.1 |
1.3 |
76 |
|
YE2-132M2-6 |
5.5 |
7.5 |
12.96 |
960 |
86.0 |
0.75 |
6.8 |
2.0 |
2.1 |
1.3 |
76 |
|
YE2-160M-6 |
7.5 |
10 |
16.75 |
970 |
87.2 |
0.78 |
6.8 |
2.0 |
2.1 |
1.3 |
80 |
|
YE2-160L-6 |
11 |
15 |
23.85 |
970 |
88.7 |
0.79 |
6.9 |
2.0 |
2.1 |
1.2 |
80 |
|
YE2-180L-6 |
15 |
20 |
31.0 |
970 |
89.7 |
0.80 |
7.3 |
2.0 |
2.1 |
1.2 |
79 |
|
YE2-200L1-6 |
18.5 |
25 |
38.9 |
980 |
90.4 |
0.80 |
7.2 |
2.0 |
2.1 |
1.2 |
79 |
|
YE2-200L2-6 |
22 |
30 |
45.4 |
980 |
90.9 |
0.81 |
7.3 |
2.0 |
2.1 |
1.2 |
79 |
|
YE2-225M-6 |
30 |
40 |
60.6 |
980 |
91.7 |
0.82 |
6.8 |
2.0 |
2.1 |
1.2 |
80 |
|
YE2-250M-6 |
37 |
50 |
73.5 |
980 |
92.2 |
0.83 |
7.0 |
2.0 |
2.1 |
1.2 |
82 |
|
YE2-280S-6 |
45 |
60 |
86.8 |
980 |
92.7 |
0.85 |
7.2 |
2.0 |
2.0 |
1.1 |
83 |
|
YE2-280M-6 |
55 |
75 |
104.4 |
980 |
93.1 |
0.86 |
7.2 |
2.0 |
2.0 |
1.1 |
83 |
|
YE2-315S-6 |
75 |
100 |
144.8 |
985 |
9.7 |
0.84 |
6.5 |
2.0 |
2.0 |
1.0 |
88 |
|
YE2-315M-6 |
90 |
125 |
171.1 |
985 |
94.0 |
0.85 |
6.6 |
2.0 |
2.0 |
1.0 |
88 |
|
YE2-315L1-6 |
110 |
150 |
208.5 |
985 |
94.3 |
0.85 |
6.6 |
2.0 |
2.0 |
1.0 |
88 |
|
YE2-315L2-6 |
132 |
180 |
246.5 |
985 |
94.6 |
0.86 |
6.6 |
2.0 |
2.0 |
1.0 |
88 |
|
YE2-355M1-6 |
160 |
215 |
298.2 |
990 |
94.8 |
0.86 |
6.7 |
2.0 |
2.0 |
1.0 |
88 |
|
YE2-355M2-6 |
200 |
270 |
371.9 |
990 |
95.0 |
0.86 |
6.8 |
2.0 |
2.0 |
0.9 |
89 |
|
YE2-355L1-6 |
250 |
340 |
464.9 |
990 |
95.0 |
0.86 |
6.8 |
2.0 |
2.0 |
0.9 |
89 |
|
YE2-355L2-6 |
315 |
420 |
585.8 |
990 |
95.0 |
0.86 |
6.8 |
2.0 |
2.0 |
0.8 |
95 |
|
YE2-80M1-8 |
0.18 |
0.25 |
0.9 |
645 |
51.0 |
0.61 |
3.3 |
1.8 |
1.9 |
1.3 |
60 |
|
YE2-80M2-8 |
0.25 |
0.37 |
1.1 |
645 |
54.0 |
0.61 |
3.3 |
1.8 |
1.9 |
1.3 |
60 |
|
YE2-90S-8 |
0.37 |
0.55 |
1.5 |
670 |
62.0 |
0.61 |
4.0 |
1.8 |
1.9 |
1.3 |
64 |
|
YE2-90L-8 |
0.55 |
0.75 |
2.2 |
670 |
63.0 |
0.61 |
4.0 |
1.8 |
2.0 |
1.3 |
64 |
|
YE2-100L1-8 |
0.75 |
1 |
2.4 |
680 |
71.0 |
0.67 |
4.0 |
1.8 |
2.0 |
1.2 |
67 |
|
YE2-100L2-8 |
1.1 |
1.5 |
3.3 |
680 |
73.0 |
0.69 |
5.0 |
1.8 |
2.0 |
1.2 |
67 |
|
YE2-112M-8 |
1.5 |
2 |
4.5 |
690 |
75.0 |
0.69 |
5.0 |
1.8 |
2.0 |
1.2 |
69 |
|
YE2-132S-8 |
2.2 |
3 |
6.0 |
705 |
78.0 |
0.71 |
6.0 |
1.8 |
2.0 |
1.2 |
72 |
|
YE2-132M-8 |
3.0 |
4 |
7.9 |
705 |
79.0 |
0.73 |
6.0 |
1.8 |
2.0 |
1.2 |
72 |
|
YE2-160M1-8 |
4.0 |
5.5 |
10.3 |
720 |
81.0 |
0.73 |
6.0 |
1.9 |
2.0 |
1.2 |
76 |
|
YE2-160M2-8 |
5.5 |
7.5 |
13.6 |
720 |
83.0 |
0.74 |
6.0 |
2.0 |
2.0 |
1.2 |
76 |
|
YE2-160L-8 |
7.5 |
10 |
17.8 |
720 |
85.5 |
0.75 |
6.0 |
2.0 |
2.0 |
1.1 |
76 |
|
YE2-180L-8 |
11 |
15 |
25.1 |
730 |
87.5 |
0.76 |
6.6 |
2.0 |
2.0 |
1.1 |
78 |
|
YE2-200L-8 |
15 |
20 |
34.1 |
730 |
88.0 |
0.76 |
6.6 |
2.0 |
2.0 |
1.1 |
80 |
|
YE2-225S-8 |
18.5 |
25 |
41.1 |
735 |
90.0 |
0.76 |
6.6 |
1.9 |
2.0 |
1.1 |
80 |
|
YE2-225M-8 |
22 |
30 |
47.4 |
735 |
90.5 |
0.78 |
6.6 |
1.9 |
2.0 |
1.1 |
80 |
|
YE2-250M-8 |
30 |
40 |
63.4 |
735 |
91.0 |
0.79 |
6.6 |
1.9 |
2.0 |
1.1 |
82 |
|
YE2-280S-8 |
37 |
50 |
76.8 |
735 |
91.5 |
0.79 |
6.6 |
1.9 |
2.0 |
1.0 |
83 |
|
YE2-280M-8 |
45 |
60 |
92.9 |
735 |
92.5 |
0.79 |
6.6 |
1.9 |
2.0 |
1.0 |
82 |
|
YE2-315S-8 |
55 |
75 |
111.2 |
735 |
92.8 |
0.81 |
6.6 |
1.8 |
2.0 |
0.9 |
88 |
|
YE2-315M-8 |
75 |
100 |
151.3 |
735 |
93.0 |
0.81 |
6.6 |
1.8 |
2.0 |
0.9 |
88 |
|
YE2-315L1-8 |
90 |
125 |
177.8 |
735 |
93.8 |
0.82 |
6.6 |
1.8 |
2.0 |
0.9 |
88 |
|
YE2-315L2-8 |
110 |
150 |
216.8 |
735 |
94.0 |
0.82 |
6.6 |
1.8 |
2.0 |
0.9 |
88 |
|
YE2-355M1-8 |
132 |
180 |
260.2 |
740 |
93.7 |
0.82 |
6.4 |
1.8 |
2.0 |
0.9 |
95 |
|
YE2-355M2-8 |
160 |
215 |
313.7 |
740 |
94.2 |
0.82 |
6.4 |
1.8 |
2.0 |
0.9 |
95 |
|
YE2-355L-8 |
200 |
270 |
386.2 |
740 |
94.5 |
0.83 |
6.4 |
1.8 |
2.0 |
0.9 |
95 |
Featured Products
Messages
Get In Touch
Plug into Our Expertise and Power Your Business to Success with Motor Innovation.
Zhejiang Chengcheng Electromechanical Co.. Ltd.
ADD:No. 455, Haifeng Road, Binhai Industrial Park, Jiaojiang District, Taizhou City, Zhejiang Province
Domestic Sales Department
+8613586215201 (Tel/Wechat/Whatsapp)
©2024 Zhejiang Chengcheng Electromechanical Co.. Ltd. Privacy Policy Powered by:300.cn
